Analysis Of CNC Machining Technology & Cost Composition Of Titanium Alloy Parts

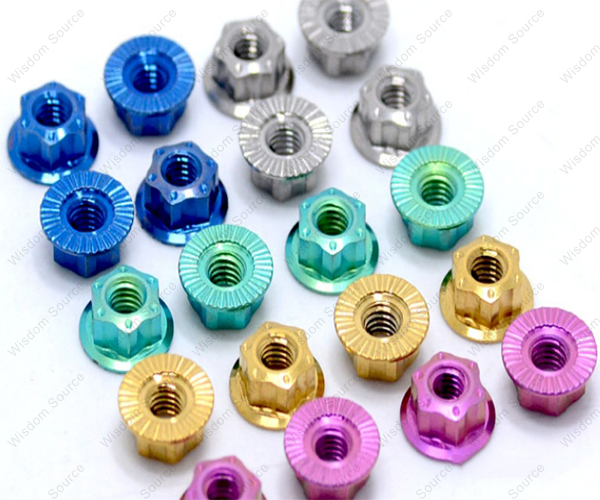

Because of its high specific strength, strong corrosion resistance, and excellent biocompatibility, titanium alloys are widely used in high-end manufacturing fields such as aerospace, medical equipment, and energy equipment. However, its material characteristics of poor thermal conductivity, low elastic modulus, and high chemical activity also make it a typical difficult-to-process metal. Understanding the cost composition of titanium alloy CNC machining and adopting reasonable process optimization methods are the key to achieving high-precision and low-cost machining.

1. Analysis Of The Difficulties Of Titanium Alloy Processing

The processing cost of titanium alloy is significantly higher than that of aluminum alloy, ordinary steel and other metals. The root cause lies in the processing challenges brought about by its material properties.：

1) Low Thermal Conductivity:

The thermal conductivity of titanium alloy is about 1/15 of that of aluminum alloy. The heat generated during the cutting process is difficult to quickly conduct through the workpiece or chips, and a large number of them gather at the edge of the tool, accelerating tool wear. In actual production, the tool wear speed during titanium alloy processing can reach about 5 times that of aluminum alloy processing.

2) Low Elastic Modulus:

It is about 1/2 of steel. During processing, the workpiece is prone to elastic deformation under the action of cutting force, which affects the dimensional accuracy and may cause vibration. This usually requires a lower cutting speed and feed, thereby lengthening the processing time of a single piece.

3) High Chemical Activity:

At high temperatures, it is easy to react with the tool material in affinity, resulting in the phenomenon of sticking to the tool, which further exacerbates the tool loss and affects the surface quality.

2. The Cost Composition Of CNC Machining About Titanium Alloy Parts

The processing cost of titanium alloy parts is determined by multiple links, and the proportion of each varies depending on the part structure, accuracy requirements and batch size. It can usually be summarized as the following core parts：

1) The Cost Of Raw Materials (accounting for about 40%-50%)

The price of titanium alloy raw materials is much higher than that of ordinary metals, and the material grade (such as TC4, TA2, TC11, etc.) and the supply status directly affect the difficulty of subsequent processing and the performance of the finished product, which accounts for the largest proportion of the cost structure.

2) Tool Cost (accounting for about 15%-20%)

Titanium alloy processing requires the use of special cemented carbide tools (such as YG or tools with special coatings), and the unit price is usually several times that of ordinary tools. At the same time, due to the high cutting temperature and fast tool wear, the tool consumption per unit product has increased significantly.

3) Equipment & Labor Costs (accounting for about 20%-30%)

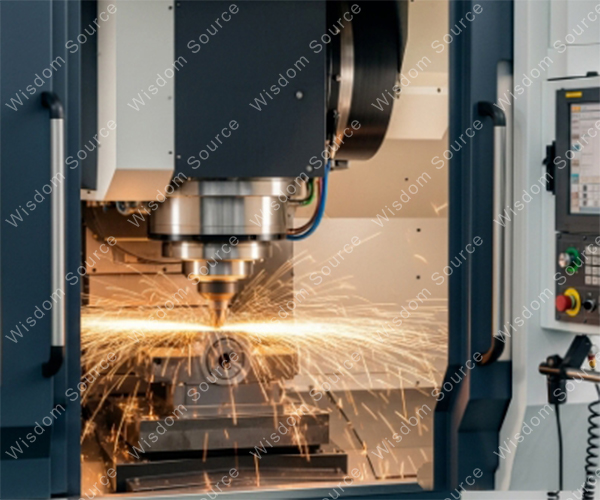

High-precision titanium alloy parts usually require the use of high-rigidity, high-precision multi-axis machining centers, and equipment depreciation and maintenance costs are higher. In addition, the processing process relies on professionals (programming, debugging, machine operation, testing), and labor costs are greatly invested.

4) Quality Control & Process Costs (The Total Proportion Is About 10%-20%)

In order to ensure strict tolerance requirements (such as ±0.005mm order) and surface quality, it is necessary to configure three-coordinate measuring instruments and other testing equipment, and establish a full-process inspection system. For parts with complex structures, the initial process research and development, fixture design and trial processing costs also need to be apportioned to the overall cost.

3. Process Optimization: The Core Path To Reduce Processing Costs

In titanium alloy processing, process optimization is the key to achieving cost control. Through reasonable programming strategies, cutting parameter adjustment and auxiliary measures, tool loss can be effectively reduced, machining time can be shortened, and waste of rework can be avoided.

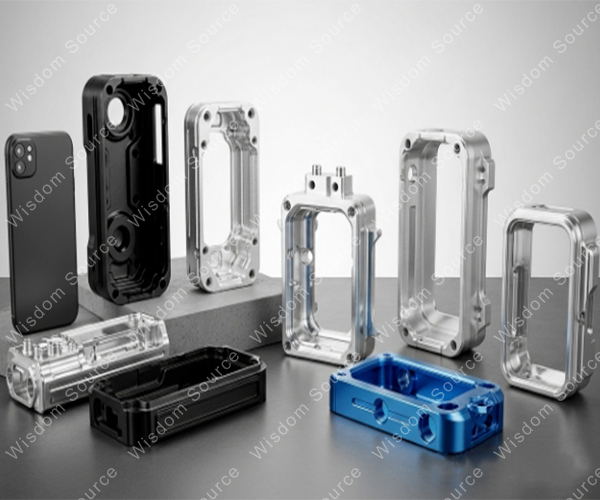

1) Programming & Machining Path Optimization

For parts with complex curved surfaces, elliptical contours, or multiple internal grooves, computer-assisted programming is used for simulation and optimization, which can reduce the time-consuming manual programming and the risk of errors. Reasonable process arrangements-for example, the internal shape processing is completed first, and then the shape processing is carried out through special tooling-help to control the deformation and improve the primary yield.

2) Cutting Parameters & Tool Management

In view of the low thermal conductivity characteristics of titanium alloy, the cutting method of “small tool volume and appropriate feed” is adopted, and the high-pressure internal cooling system can effectively control the temperature of the cutting area and delay tool wear. In terms of tool selection, the use of high-wear-resistant cemented carbide coated tools, combined with the tool life management system, can ensure efficiency while reducing the cost of unit tool consumption.

3) Fixture Design Optimization

In the processing of titanium alloy parts, vibration and deformation caused by improper clamping are common problems that affect accuracy and efficiency. Through the design of customized fixtures (such as the use of gap-matched mandrel, the addition of auxiliary support, etc.), the clamping rigidity is improved and the number of clamping times is reduced, which helps to stabilize the machining accuracy and improve efficiency.

Application case reference: A titanium alloy seal for an energy equipment has a wall thickness of only 2mm, a tolerance requirement of ±0.04mm, and a surface roughness of Ra0.4. Through the following process optimization measures:

1) Adopt a special mandrel fit (gap 0.007mm) to improve clamping rigidity and reduce vibration;

2) Set the micro-cutting parameters (the amount of knife eaten is 0.03mm, and the amount of feed is 0.04mm/r);

3) Use the main and subroutine sets to complete the multi-inner groove processing.

Finally, the processing efficiency is improved, the tool consumption is reduced, and the product pass rate is stable at a high level, which verifies the positive effect of process optimization on cost and accuracy.

4. Reference For The Selection Of Titanium Alloy Parts Processing Service Providers

For companies with precision machining needs of titanium alloys, when choosing outsourcing suppliers, it is recommended to comprehensively evaluate from the following dimensions:

1) Equipment and testing capabilities: whether it has high-rigidity and high-precision multi-axis processing equipment, as well as supporting testing methods such as three-coordinate measuring instruments and roughness meters, is the basis for ensuring accuracy and quality.

2) Process development experience: Is there a mature process plan for titanium alloy materials, especially the accumulation of processing cases in similar industries (such as aerospace, medical care, and energy), which can reflect its ability to deal with difficult problems.

3) Supply chain and cost control: Manufacturers with stable raw material channels and bulk procurement capabilities have more advantages in raw material cost control. At the same time, standardized tool management and process flow help reduce hidden costs.

4) Quality system and delivery guarantee: whether a full-process quality control system has been established from drawing review, trial processing to finished product inspection, and whether a reasonable delivery cycle can be guaranteed according to customer needs.

CNC machining of titanium alloy parts is a system engineering. Its cost control is not simply to reduce individual costs, but to achieve an effective balance between accuracy and cost through process optimization, equipment adaptation and quality management on the basis of understanding material characteristics and processing difficulties. For manufacturing companies, the establishment of a scientific outsourcing evaluation mechanism and the formation of synergy with processors with professional capabilities are an effective way to improve the comprehensive price ratio of titanium alloy parts.
